Larsen Fire Extinguishers

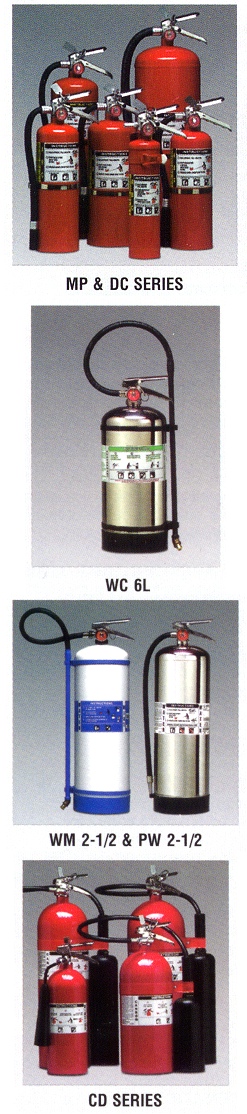

MP SERIES Multi-Purpose Dry Chemical
These units contain specially fluidized and siliconized mono ammonium phosphate powder which smothers and breaks the chain reaction on Class B fires, fuses and insulates Class A fires, and as a non-conductor of electricity, is effective on Class C fires.

DC SERIES Regular Dry Chemical
These units contain specially siliconized sodium bicarbonate powder with free flowing and non-caking additives, suitable for fire in flammable liquids, and energized electrical equipment. NOTE: Since as of July 1, 1998, all new extinguishers installed in restaurant kitchens must be K class rated, the DC Series no longer is recommended for use in kitchen areas.

All multi-purpose, regular or dry chemical units feature:

Heavy Duty DOT Steel Cylinders
Rugged Metal Valves and Siphon Tubes
Replaceable Molded Valve Stem Seals
Corrosion and Impact Resistant Polyester/Epoxy Paint Finish
Pull Pin-Upright Squeeze Grip Operation
Approved to -65慚
Non-Toxic
Pressure Gauges
Contact Factory if Non-Ferrous Cylinders are Required

WC SERIES Wet Chemical
Wet Chemical units are designed specifically for kitchen grease fire hazards and meet the new K class listing now required for all extinguishers installed in restaurant kitchens. They contain a special potassium acetate based, low PH agent, which leaves no chemical residue to clean up. The spray applicator wand keeps the operator at a safe distance from the fire. Larger 2½ gallon unit with identical U.L. rating is available for a limited time. (shipped uncharged)

PW SERIES Pressurized Water
This unit is ideally suited for all industrial and commercial applications, where easy to use, positive on-off operation is important. Water is used as the extinguishing agent, making it highly effective on deep seated Class A fires (shipped empty).

WM SERIES Water Mist
This unit is designed for use wherever there is a Class A hazard near electrical equipment and the environment is of paramount concern. The extinguishing agent is distilled water, and the wand provides greatest operator safety. There is no risk of electrical conductivity or thermal or static shock. Ideal for use in health care, data processing, telecommunication, and clean room facilities. (shipped empty)

CD SERIES Carbon Dioxide
These units contain liquid carbon dioxide under pressure. It is discharged as a white cloud of "snow", which effectively smothers a fire. Carbon dioxide is a clean, non-conductor of electricity for Class B and C fires.

Absolutely Rust-Free Aluminum Cylinders
Up to 30% Lighter
O-Ring Seal, Straight Thread Brass Valve Fits All Sizes

HT SERIES Halotron I (Not Shown)
Halotron I is an EPA approved clean agent which discharges as a rapidly evaporating liquid, leaving no residue. It effectively extinguishes Class A, B and C fires and is intended for use in areas formerly protected by Halon 1211. Larsen's HT Series extinguishers are available in four different sizes. Please contact the factory for additional information.

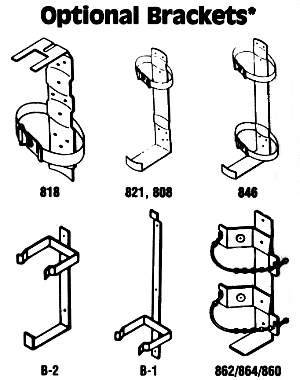

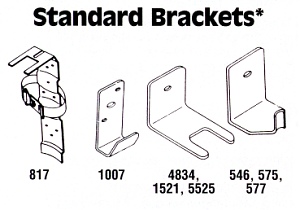

*NOTE: Standard brackets are included with all extinguishers at no additional cost. It specified, optional brackets are only available at additional cost. All the standard and optional brackets are designed to accommodate Larsen's extinguishers. While most comparably sized extinguishers usually will function with the brackets above, Larsen's cannot assume responsibility for variations in cylinder dimensions among various extinguisher suppliers.

Model Number	Nominal Capacity	Shipping Weight	Cylinder Diameter	Overall Height	Overall Width	UL Rating	Standard Bracket*	Optional Bracket*
MP2½ MP5 MP5-A MP6 MP10 MP20	2½ lbs. 5 lbs. 5 lbs. 6 lbs. 10 lbs. 20 lbs.	5½ lbs. 9 lbs. 9 lbs. 12 lbs. 18 lbs. 38 lbs.	3 in. 4¼ in. 4¼ in. 5 in. 5 in. 7 in.	14^5/8 in. 15¼ in. 16 in. 16 in. 20 in. 23¼ in.	5¾ in. 7¼ in. 7¼ in. 7¾ in. 7¾ in. 10¼ in.	1A-10B:C 2A-10B:C 3A-40B:C 3A-40B:C 4A-60B:C 20A-120B:C	817 1521 1521 5525 5525 1007	860 B-2, 818, 821, 860 821, 860 808, 862 B-2, 846, 862 864
DC2½ DC5 DC6 DC10 DC20	2½ lbs. 5½ lbs. 6 lbs. 10 lbs. 20 lbs.	5½ lbs. 9½ lbs. 13 lbs. 18 lbs. 38 lbs.	3 in. 4¼ in. 5 in. 5 in. 7 in.	145/8 in. 15¼ in. 16¼ in. 20 in. 23¼ in.	5¾ in. 7¾ in. 8½ in. 7¼ in. 10¼ in.	10B:C 40B:C 40B:C 60B:C 120B:C	817 1521 1007 5525 1007	860 B2, 818, 821, 860 808, 862 B-2, 846, 862 864
WC-6L	6 liters	12 lbs.	7 in.	25 in.	9 in.	2A:lB:C:K	1007	864
PW2½	2½ gal.	7½ lbs.	7 in.	24½ in.	9 in.	2A	1007	B1, 864
WM2½	2½ gal.	9 lbs.	7 in.	28 in.	14 in.	2A:C	1007	864
CD5 CD1O CD15 CD20	5 lbs. 10 lbs. 15 lbs. 20 lbs.	14 lbs. 28¼ lbs. 37¾ lbs. 50¾ lbs.	5¼ in. 7 in. 7 in. 8 in.	17¾ in. 24 in. 30 in. 30 in.	8¼ in. 12 in. 12 in. 13 in.	5-B:C 10-B:C 10-B:C 10-B:C	546 575 575 577	862 864 864 864

Paper, wood, cloth, etc. Where quenching by water or insulating by general purpose dry chemical is effective.

Burning liquids (Gasoline, oils, cooking fats, etc.) Where smoothering action is required.

Fire in live electrical equipment (Motors, switches, appliances, etc.) Where a non-conductive extinguishing agent is required.

Cooking Media.
