Available Model: B-XT
Cierra B-XT Series exterior access panels provide quick and efficient access in exterior applications, while keeping even the harshest of environments out of the building. Dual acting non-locking handles make it possible to open this door from the inside or outside. An exterior lockable handle is also available.
Model: B-XT SeriesDoor: 20 gauge galvanized steel. Optional: .060 aluminum door
Frame: 6063-T5 extruded aluminum frame
Hinge: Stainless steel continuous piano hinge
Latch: Two dual acting handles Optional: lockable handle for exterior
Flange: .080 6063-T5 extruded aluminum
Finish: Paint grip
Insulation: 2" thick fiberglass

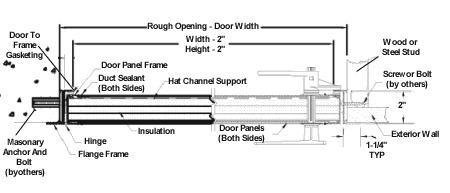

Diagrams and Model Sizes
Model B-XT
 |
|
| Click on an image above to view the larger detailed diagram | |
| Exterior B-XT Series | |
| Standard Sizes width x height | |
| (mm) | (in) |
| 305 x 305 | 12 x 12 |
| 457 x 457 | 18 x 18 |
| 610 x 610 | 24 x 24 |
| 559 x 762 | 22 x 30 |
| 559 x 914 | 22 x 36 |
| 610 x 914 | 24 x 36 |
| 610 x 1219 | 24 x 48 |
| 610 x 1524 | 24 x 60 |
| 914 x 914 | 36 x 36 |
| 914 x 1219 | 36 x 48 |
| 914 x 1524 | 36 x 60 |
| 1219 x 1219 | 48 x 48 |
Please give us a call, e-mail or fax
to get what you need on time and priced right!
Toll Free: 800-272-0643
While we make every effort to update our website, some model numbers and descriptions can be changed without notice by the factories listed.
